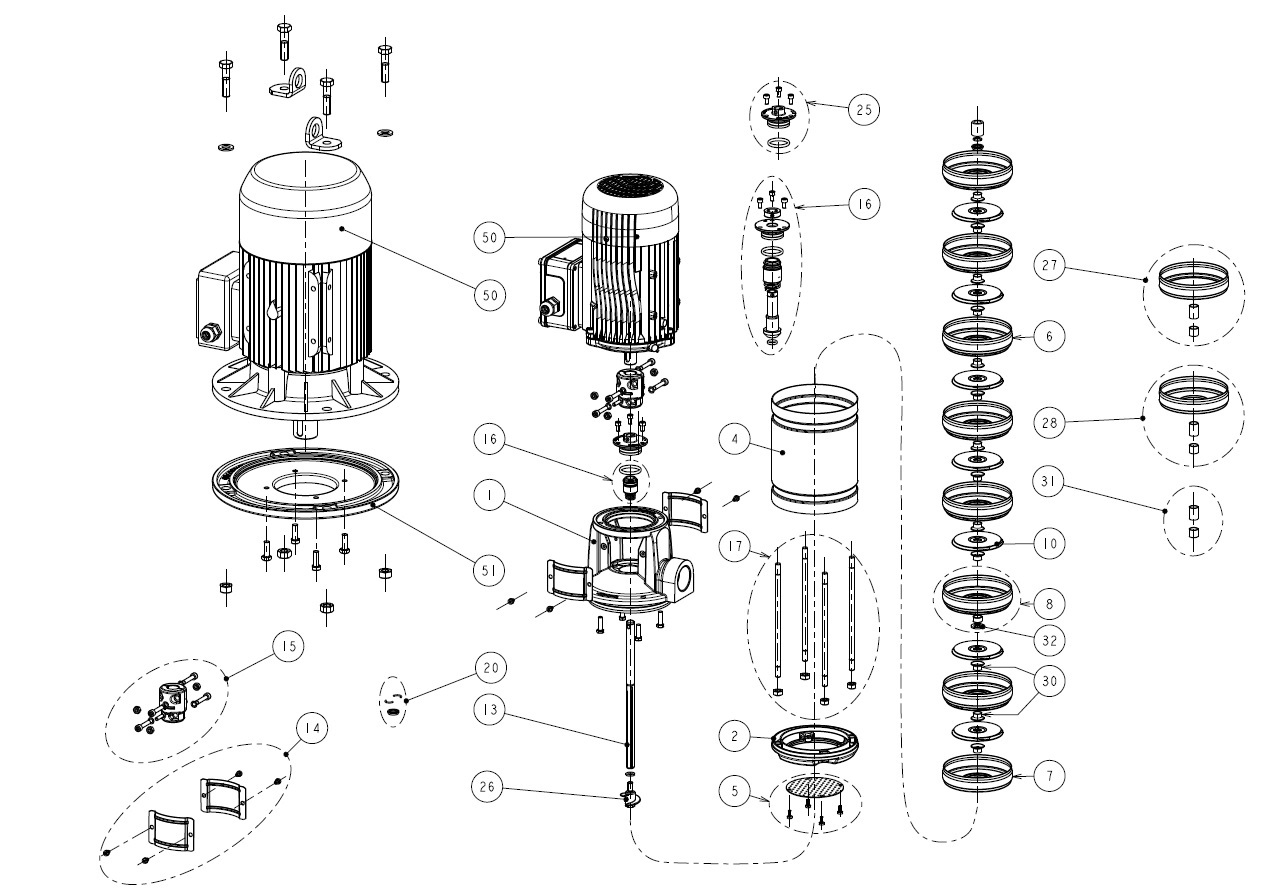

Spare parts for 10ECA1313 - 10SVI13-13CG055T5VQBV 40/69

Number	Part code	Part description	Quantity	Recommended	Special	Description of special
1	161472360	Adapter	1
2	161408130	Filter holder	1
4	166431332	Sleeve	1
5	KL12AAB	Kit filter	1
6	152803130	Diffuser	11
7	KL05ADZ	Kit Initial Stage	1
8	KL05ADC	Kit diffuser with bush	2	X
10	150703630	Impeller	13	X
13	165057160	Pump shaft	1
14	KL33AA2	Kit coupling protection	1
15	KL10ABZ	Kit coupling	1
16	KL01AH8	Kit mechanical seal	1	X		QBV - Silicon carbide, Carbon, FPM
16	KL01ALF	Kit mechanical seal	1	X	Standard option	QQE - Silicon carbide, Silicon carbide, EPDM
16	KL01ALE	Kit mechanical seal	1	X	Standard option	QQV - Silicon carbide, Silicon carbide, FPM
16	KL01ALG	Kit mechanical seal	1	X	Standard option	UUV - Tungsten carbide, Tungsten carbide, FPM
17	KL22AZ3	Kit tie rods	1
20	KL41AA0	Kit seal block	1
26	160700022	Inducer	1
28	KL06AAE	Kit diffuser housing	1
30	KL07AAP	Kit impeller spacers	3
32	KL07AA0	Kit bush spacer	2
50	50A13VE00	Complete motor IE3	1
